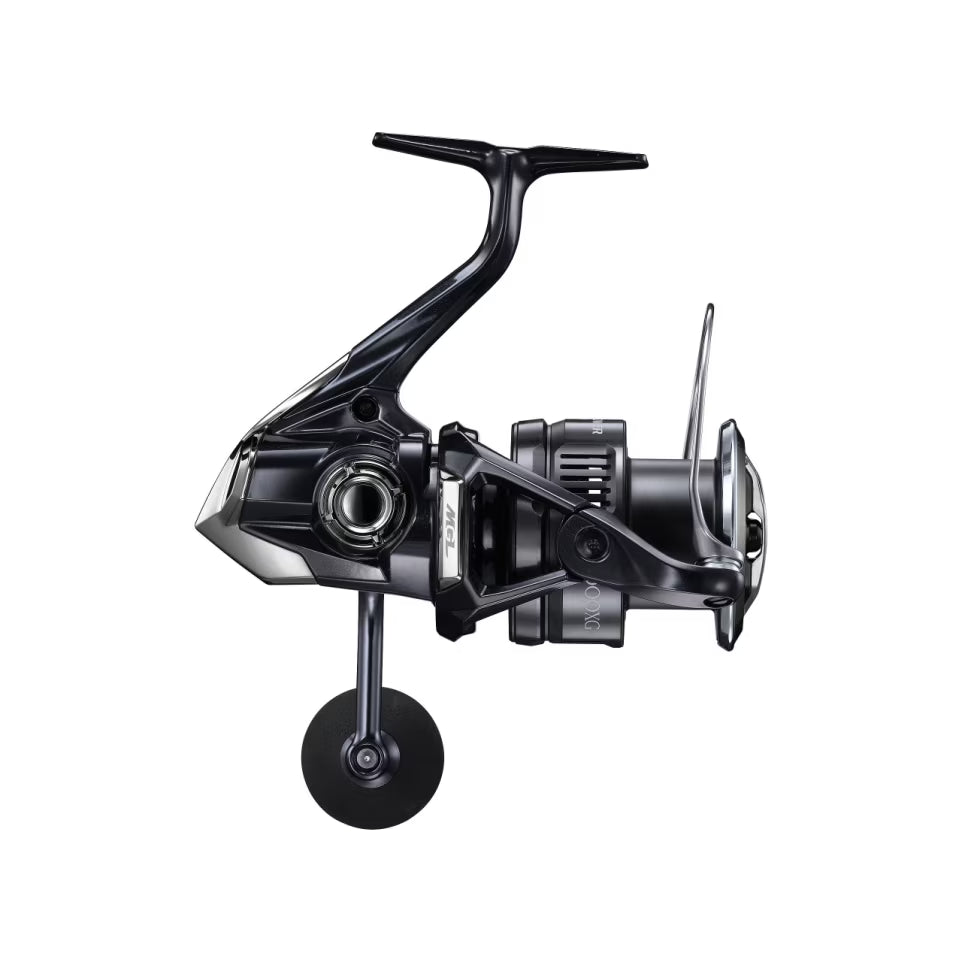

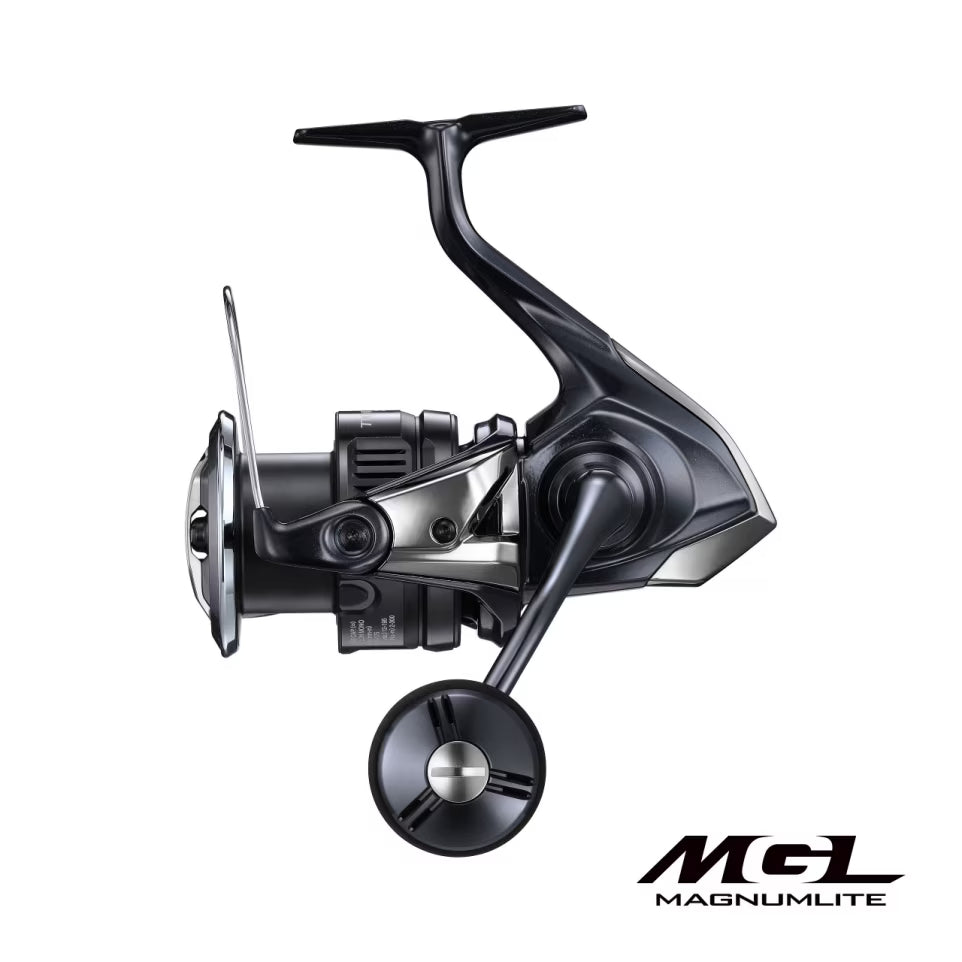

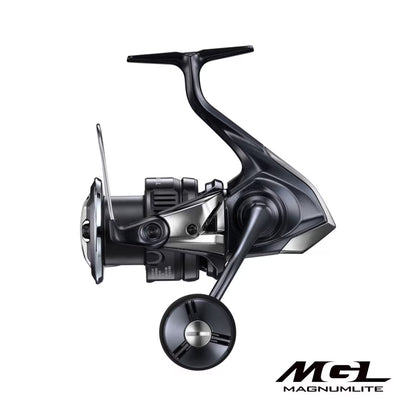

SHIMANO TWIN POWER XD
The Twin Power XD is a true workhorse in the Magnumlite series — a reel designed for maximum durability, combining power with light weight and perfectly smooth operation. It is built to perform reliably in both saltwater coastal environments and demanding freshwater spinning conditions where power, reliability, and control are essential.
This reel allows for complete control over lure presentation – from subtle lure manipulation to instant power application when a strong fish strikes. It is ideally suited for situations where fish need to be pulled out of rocks, weeds, or other snag-prone areas, as well as for working with heavier lures. The Twin Power XD is built for anglers who demand maximum reliability and performance from their tackle.
PRODUCT FEATURES
-
HAGANE Gear – cold-forged gear system for maximum durability and long service life
-
X-SHIP – enhanced gear stability and smooth power transmission
-
Micro Module II – exceptionally smooth and precise rotation
-
Silent Drive – minimal vibrations and quiet operation
-
INFINITYLOOP – optimized line lay for increased casting distance
-
INFINITYXROSS – reinforced gear teeth for greater load resistance
-
INFINITY DRIVE – lighter rotation even under heavy load
-
Duracross Drag – powerful and very stable drag system for controlling strong fish
-
Long Stroke AR-C Spool – longer and more accurate casts
-
Anti-Twist Fin – stable line control during casting and retrieve
-
X-Protect – enhanced protection against saltwater and moisture
-
Lightweight, yet extremely durable body for intensive spinning
TECHNICAL SPECIFICATIONS
-
Type: Spinning reel
-
Construction: Magnumlite series
-
Technologies: HAGANE Gear, X-SHIP, Micro Module II, Silent Drive
-
INFINITY systems: INFINITYLOOP, INFINITYXROSS, INFINITY DRIVE
-
Drag system: Duracross Drag
-
Spool: Long Stroke AR-C
-
Line control: Anti-Twist Fin
-
Protection: X-Protect for saltwater protection
-
Application: saltwater coast, heavy freshwater spinning
-
Target fish: pike, zander, salmon, marine predators, other strong fish.
| Model | Gear Ratio | Max. Drag (kg) | Max. Drag (lb) | Weight (g) | Weight (oz) | Line Capacity / Mono (lb-yd) | Line Capacity / Mono (mm-m) | Line Capacity / PE (Nr.-m) | Line Retrieve per Crank (cm) | Line Retrieve per Crank (inch) | Handle Length (mm) | Number of Bearings | Spare Spool Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TPXDC3000HGFB | 5.8 | 9 | 20 | 200 | 7.1 | 6-230, 8-170, 10-140 | 0.25-210, 0.30-130, 0.35-100 | 1-400, 1.5-270, 2-200 | 86 | 34 | 55 | 10/1 | 148ML |
| TPXDC3000XGFB | 6.4 | 9 | 20 | 200 | 7.1 | 6-230, 8-170, 10-140 | 0.25-210, 0.30-130, 0.35-100 | 1-400, 1.5-270, 2-200 | 94 | 37 | 55 | 10/1 | 148MT |
| TPXD4000PGFB | 4.4 | 11 | 24 | 245 | 8.6 | 10-200, 12-160 | 0.30-180, 0.35-130 | 1-490, 1.5-320, 2-240 | 72 | 28 | 57 | 10/1 | 148U8 |
| TPXD4000HGFB | 5.7 | 11 | 24 | 245 | 8.6 | 10-200, 12-160 | 0.30-180, 0.35-130 | 1-490, 1.5-320, 2-240 | 93 | 37 | 57 | 10/1 | 148SX |
| TPXD4000XGFB | 6.2 | 11 | 24 | 245 | 8.6 | 10-200, 12-160 | 0.30-180, 0.35-130 | 1-490, 1.5-320, 2-240 | 101 | 40 | 57 | 10/1 | 148UA |
| TPXDC5000XGFB | 6.2 | 11 | 24 | 245 | 8.6 | 12-195, 14-165 | 0.35-175, 0.40-120 | 1.5-400, 2-300, 3-200 | 101 | 40 | 57 | 10/1 | 148UC |
