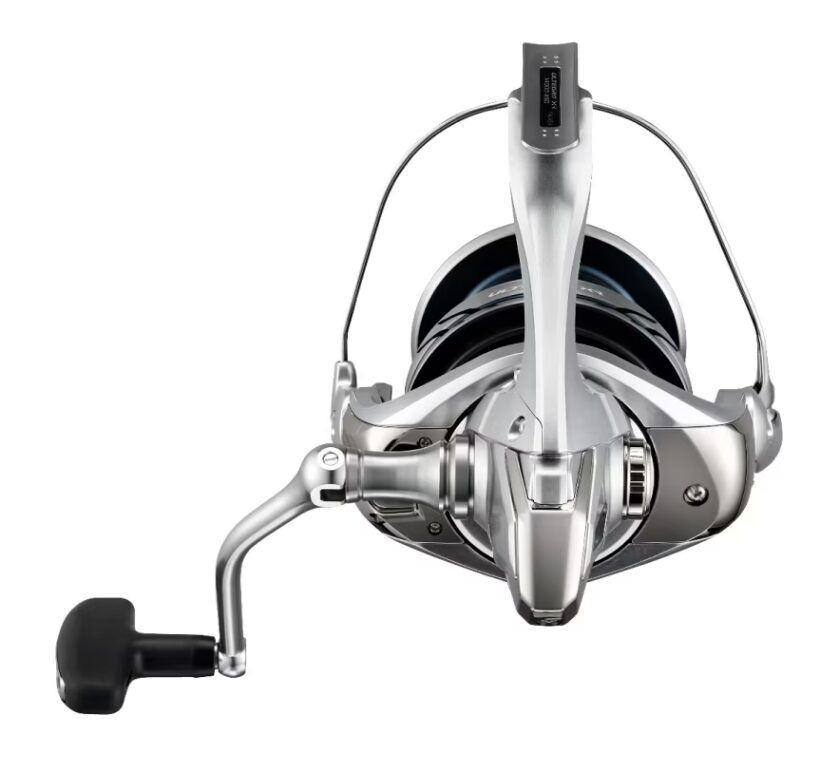

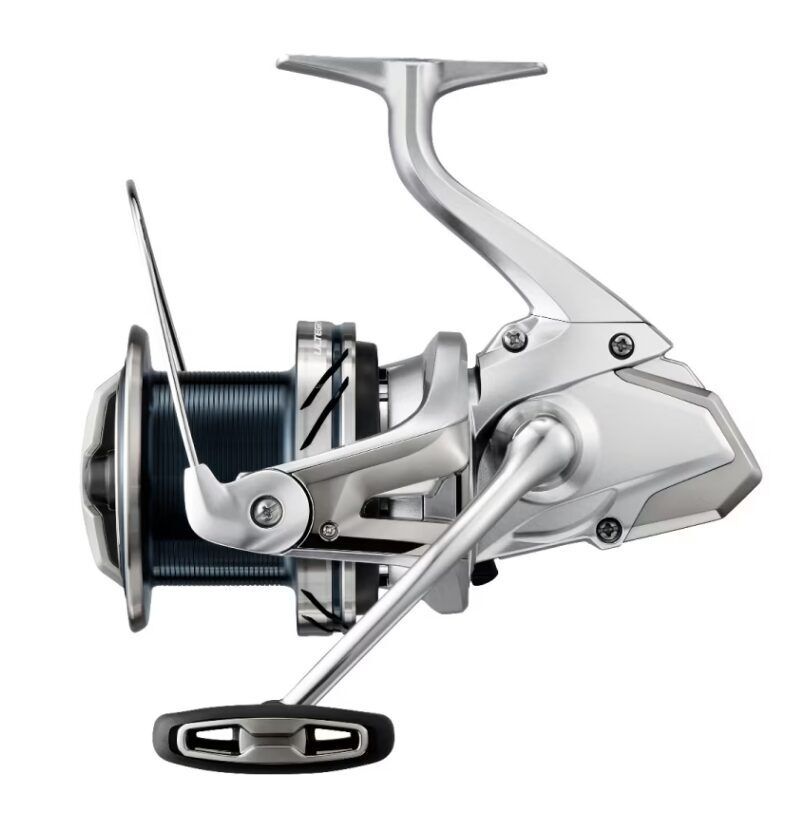

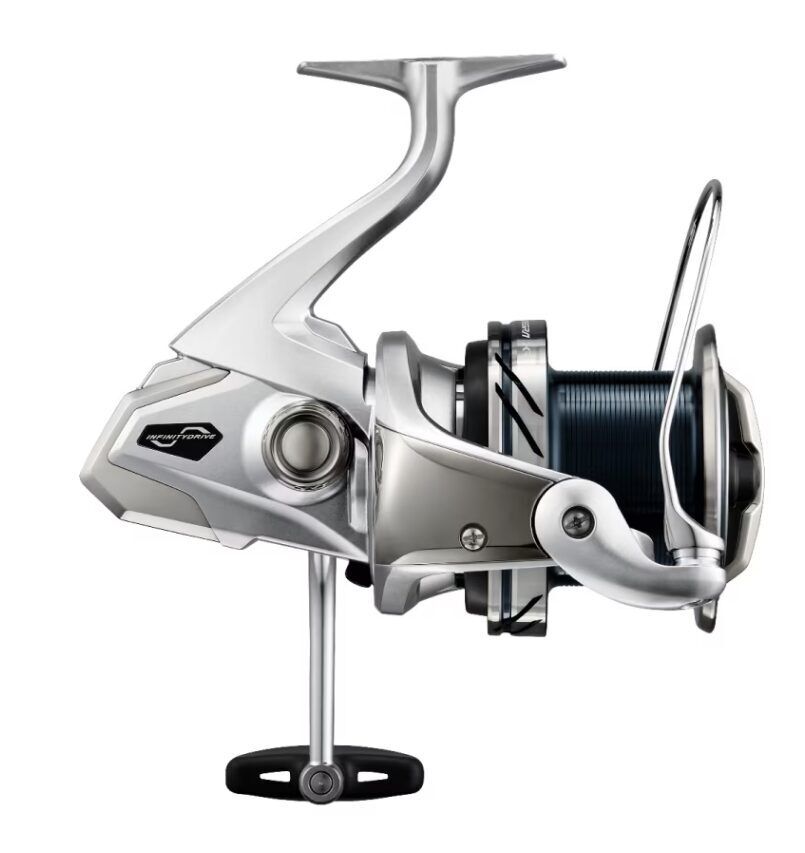

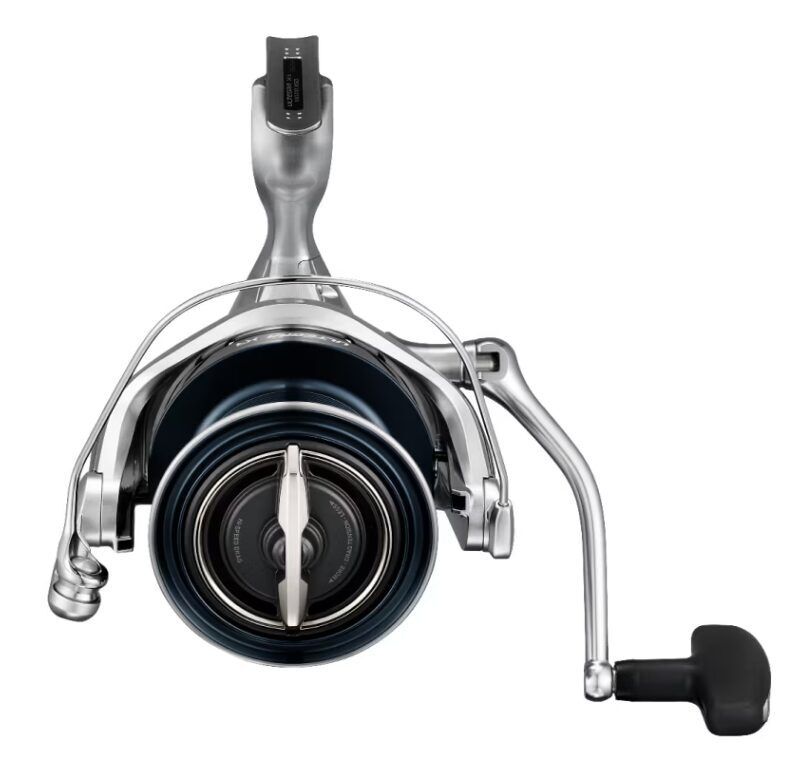

SHIMANO ULTEGRA XR XSD
The Shimano Ultegra XR XSD is the latest generation of long-distance casting reels, sitting at the top of the Ultegra series. It is designed for anglers who desire maximum casting distance, lightness, and stable mechanics even under heavy loads.
The ultra-lightweight CI4+ body, combined with Shimano's most advanced technologies, allows for greater rod speed during casting, which directly impacts casting distance. The Ultegra XR is an ideal choice for both long-range carp fishing and surfcasting situations where reaching distant spots is essential.
This reel combines excellent power, smooth rotation, and precise line lay, allowing the angler full control over their gear both during casting and when fighting a large fish.
PRODUCT FEATURES
CI4+ Body – very light and durable construction
HAGANE Gear – durable and precise gears for long-lasting operation
X-SHIP system – powerful and smooth rotation under load
Infinity Drive – reduces friction and ensures easier winding
Silent Drive – quiet and precise mechanism operation
Rigid Cast – stabilizes the spool during casting
Super Slow 5 oscillation – extra dense line lay for maximum distance
Parallel Body – optimizes the line exit angle during casting
AR-C Spool – smooth line release for longer casts
X-Protect – protects the mechanism from water and dirt
Hi-Speed Drag – fast drag adjustment with minimal turns
TECHNICAL SPECIFICATION
Model: Ultegra XR XSD
Size: 14000
Type: Big Pit / Surfcasting reel
Body: CI4+ composite
Gears: HAGANE Gear
Drag System: Hi-Speed Drag
Oscillation System: Super Slow 5
Key Technologies: Infinity Drive, Silent Drive, X-SHIP, X-Protect, Rigid Cast, Parallel Body, AR-C Spool
-
Application: carp fishing, surfcasting, long casts, competitive fishing
| Model | Gear Ratio | Max. Drag Force (kg) | Max. Drag Force (lb) | Weight (g) | Weight (oz) | Line Capacity / mono (lb-yd) | Line Capacity / mono (mm-m) | Line Capacity / braid (PE-m) | Line Retrieve per turn (cm) | Line Retrieve per turn (inch) | Handle Length (mm) | Bearing Count | Spare Spool Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ULTXR14000XSD | 4.3:1 | 20 | 44 | 535 | 18.9 | 12-600, 16-440, 20-330 | 0.35-550, 0.40-400, 0.45-300 | 6-350, 8-250, 10-200 | 103 | 41 | 90 | 5+1 | 145AE (standard), 145AR (spare) |
